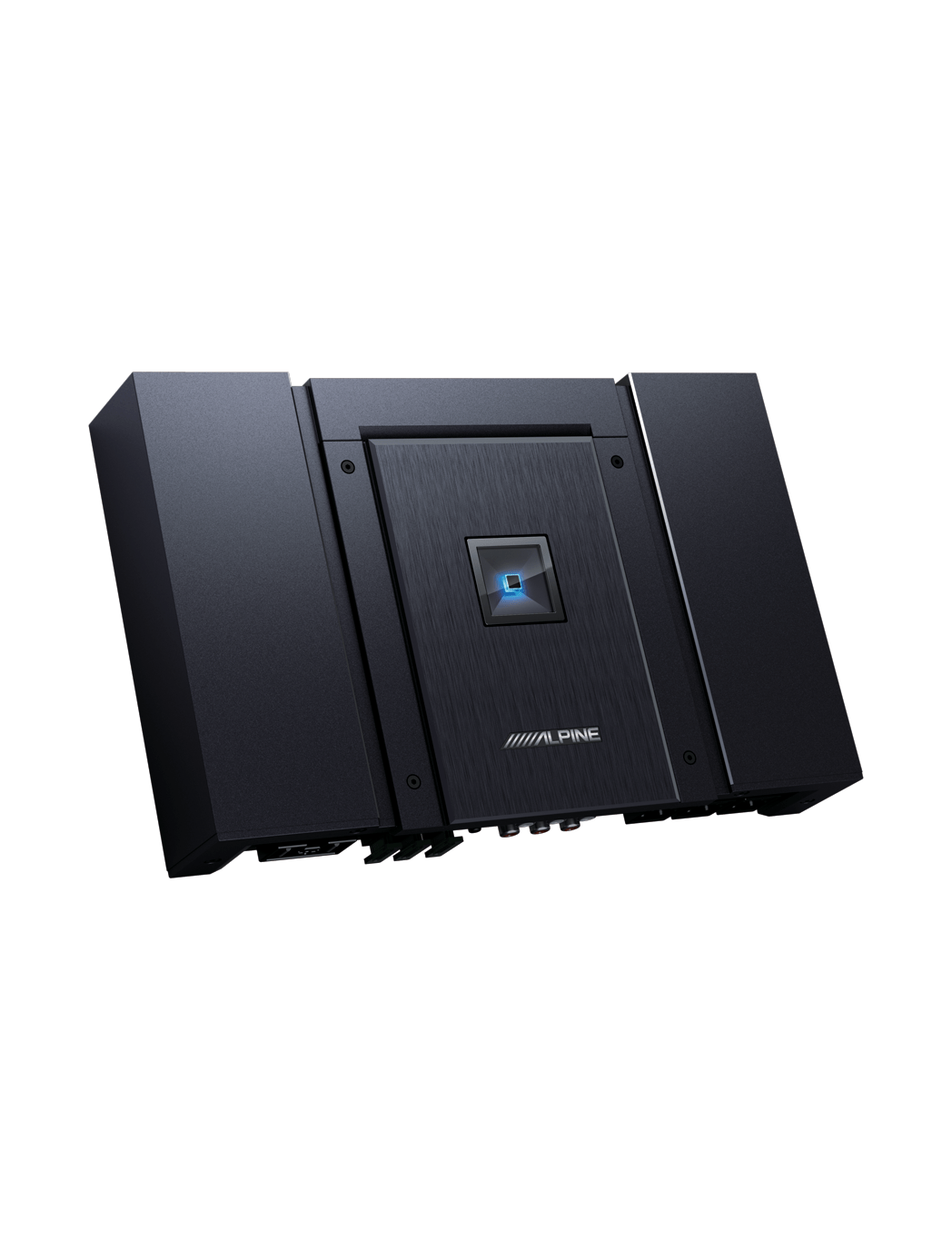

ALPINE HDA-F60 Car Amplifier

Product Detail –
Brand – /////ALPINE
Series – Status Series
Model No. – HDA-F60
Type/Component – Amplifier
Product Highlights:
Easy Integration
4-Channel Car Amplifier
“Hi-Res” Class-D Amplifier
Clean Cut Design
One-Sided Terminal
Quick and Simple
Ultra-Compact Size
Key Features:-
Preamp and Speaker-Level (Up to 10v) Inputs
Speaker-Level Inputs Require Speaker Wire to RCA Adapters
Speaker-Level Inputs Feature Signal-Sensing Amplifier Turn-On
RUX-KNOB.2 Wired Remote Level Control for Sub Channel (optional)
Quick-Connect Power and Speaker Connectors
More Information –
Frequency Response: 10 to 60 k Hz, (-3 dB)
Size: 297x192x50.8 mm (WxDxH)
Damping Factor: >500
S/N Ratio: >106dB
Rated Power: THD+N ≤0.02% (10W), ≤0.07%
Variable High & Low-Pass Filters: (50-400 Hz, 12 dB/octave)
Variable Subsonic Filter: (8-40 Hz, 24 dB/octave)
Variable Bass Boost: (0-12 dB, 50 Hz)
Fuse Rating: 30A x 3
Warranty: 1 Year

Product Specifications –
Note:-
Wiring and Hardware are Not Included with the Amplifier
4-Gauge Power and Ground Wire Recommended
