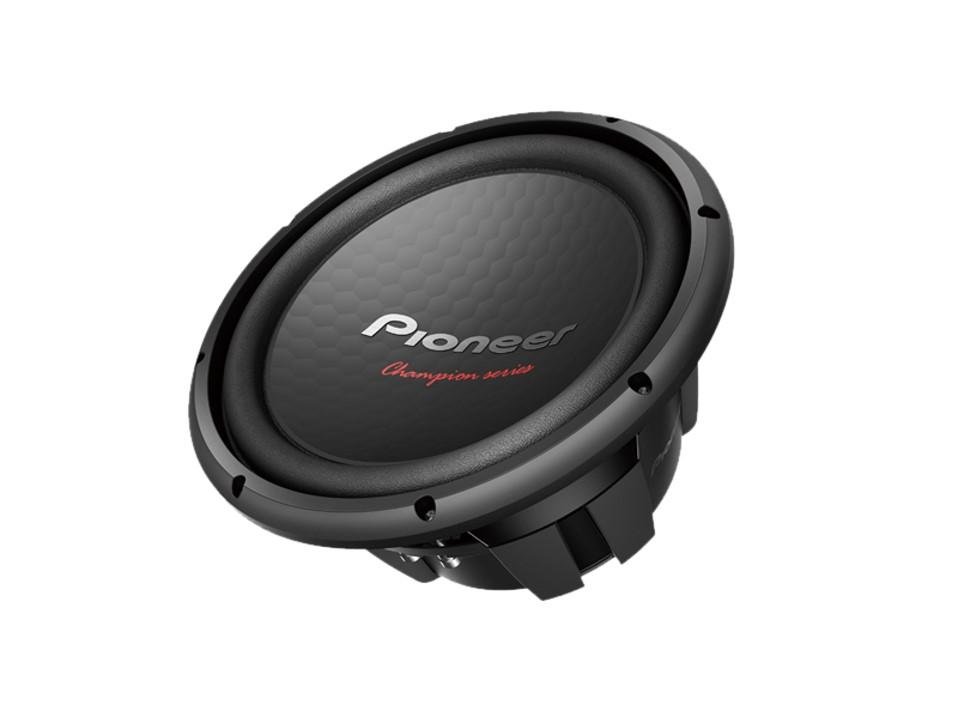

Pioneer TS-W1212D4 – Car Subwoofers

Brand – Pioneer
Model No. – TS-W1212D4
Type – Enclosure Use
Size – 12″ (in cone)
Maximum Power Output – 1600W
Nominal Power Output – 500W RMS
Dimensions: 327mm x 175mm
General Information:-
Sound Pressure Level: 92 dB（±1.5dB)
Frequency Range: 20 Hz～1.6k Hz (-20dB)
Impedance: 4 Ω (ohms) DVC
Terminal: Silver Push Terminal (screw type )
Surround Material: Dual Layer Fiber Reinforced Elastic Polymer Surround
Cone Material: IMPP Composite Cone
Mounting Depth: 157mm (5 3/4 inch)
Cutout Hole: 283mm (11 1/8 inch)
Weight: 5.82 kg
Features of Pioneer TS-W1212D4
High Power Handling and High Endurance
Deeper & Louder Bass
High Reliability and Tough Body Design
Dual Voice Coil
Light & Rigid Honeycomb Design Seamless Cone
Tough Magnet Cover
Durable Rubber Surround
Push Terminal
