ALPINE S-S69C Car Speaker

Product Detail –
Brand – /////ALPINE
Series – S Series
Model No. – S69C
Type/Component – Component Speaker System
Product Highlights:

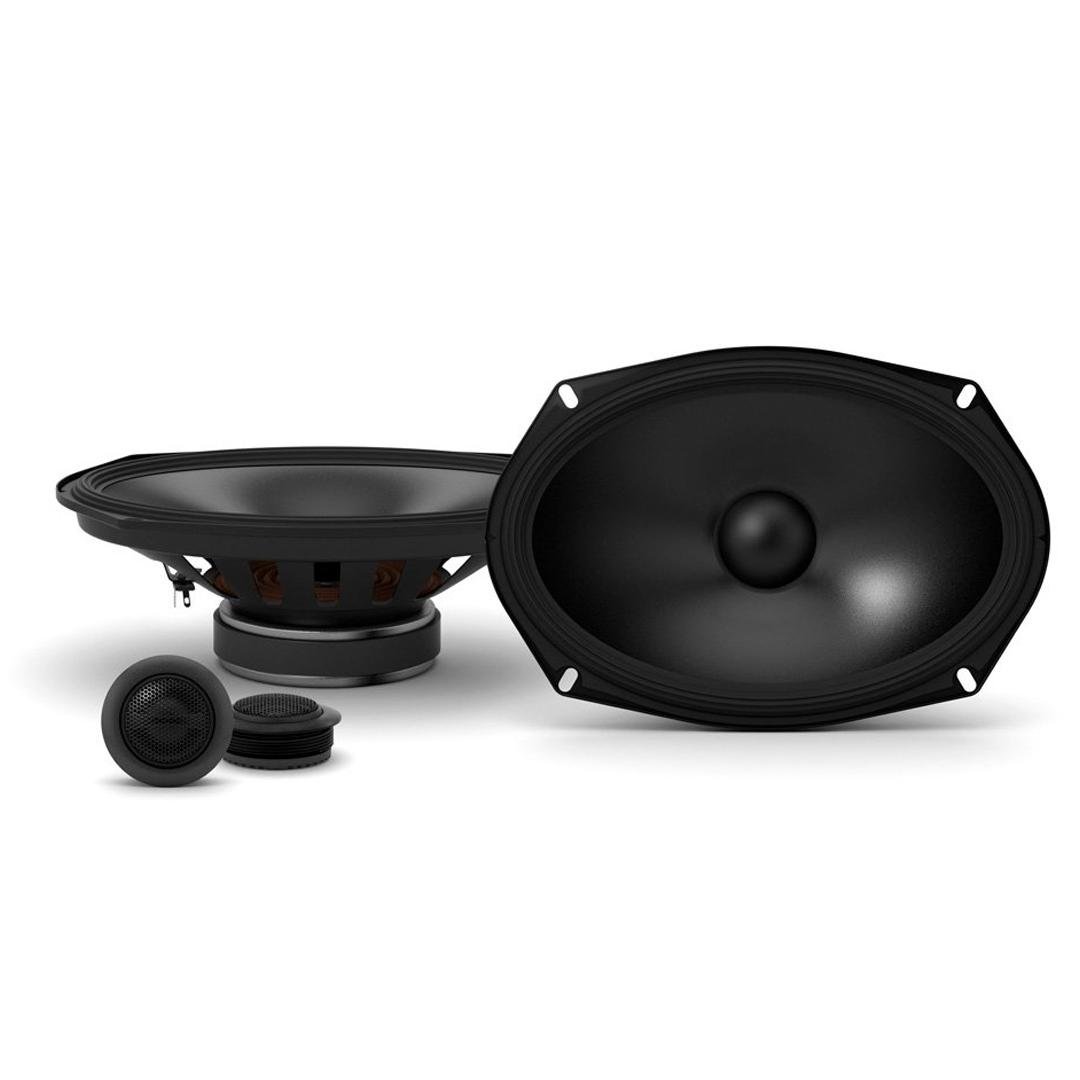

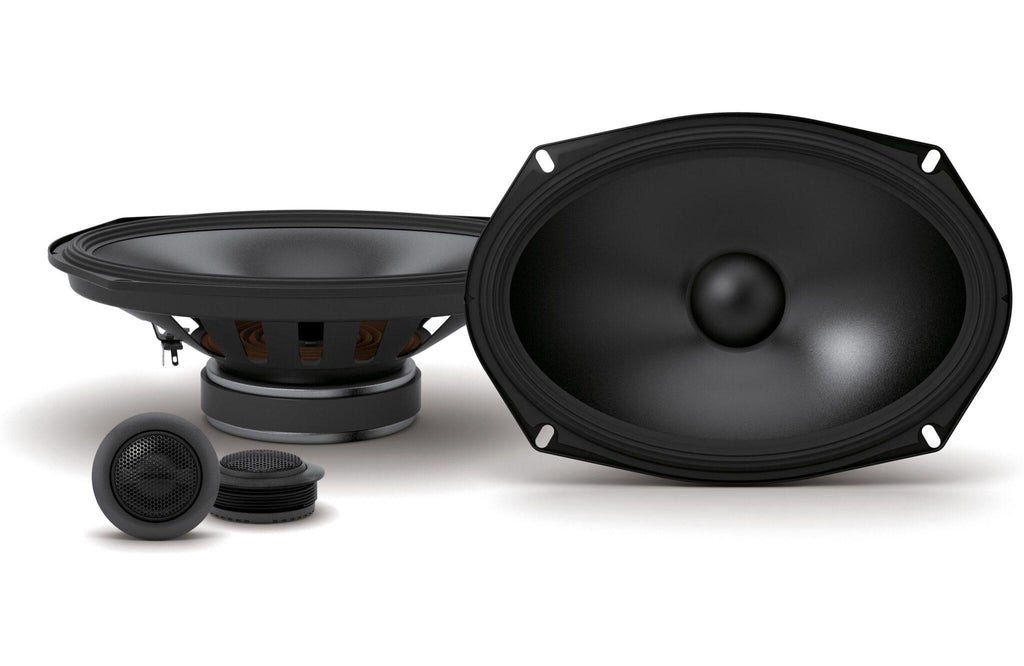

Component Speaker System Includes 2 Woofers and 2 Tweeters
6″x9″ Carbon Fiber-Reinforced Plastic Woofer Cone with Specialized Rubber Surround

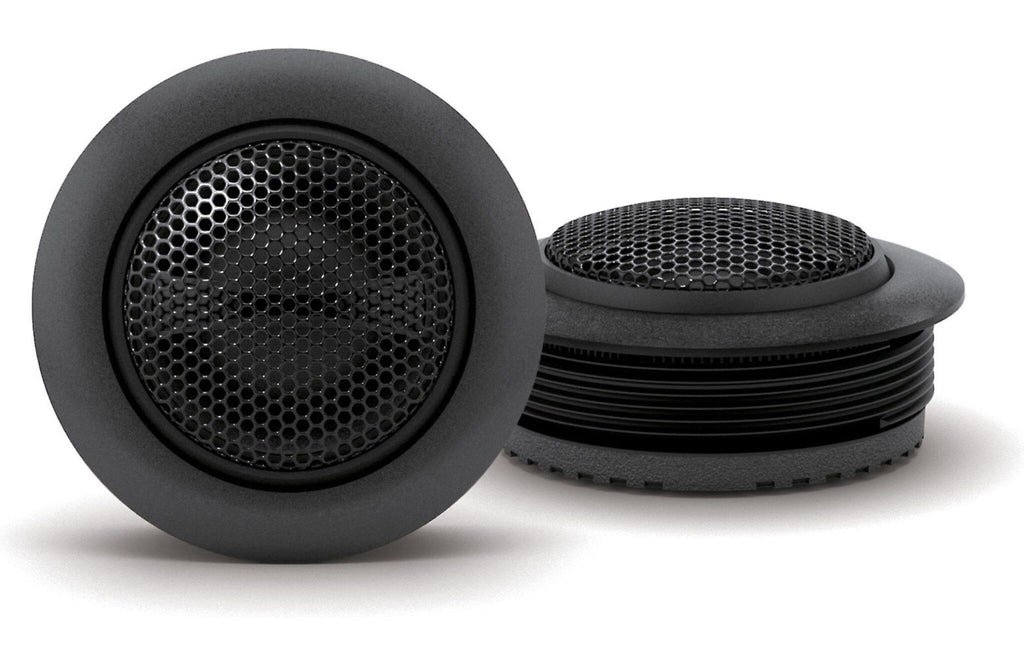

1″ Silk Dome Tweeter with Inline Crossover
Grilles Not Included
Key Features:-
Efficient Performance
Universal Applications
H.A.M.R. Surround
Wide Frequency Responses
Speaker Grilles – Protect Your Speakers
Technical Specification –
Speaker Type: 2-Way Speaker Set
Frequency Response: 65 Hz – 22k Hz
Peak Power Capacity: 260W
Max RMS Power Capacity: 85W
Impedance: 4Ω (ohm)
Sensitivity: 90 dB SPL (1W @ 1m)
Sound Pressure Level (SPL): 1W @ 1m
Recommended Amplification: Up to 85W RMS per Channel
Dimensions: 6″ x 9″ (16cm x 24cm)
– Tweeter Size: 1″ (2.5cm)
– Cutout Diameter: 5 29/32″ x 8-3/4″ (15cm x 22.2cm)
– Mounting Depth: 2-15/16″ (5.8cm)
Warranty: 1-Year Manufacturer’s Warranty

More Features –
– S-Series Speakers Deliver the Winning Combination of Incredible Sound and Value Within the Entry-Level Category
– Larger Voice Coil and New CFRP (Carbon Fiber Reinforced Plastic) Cone
– Now with ALPINE’s Patented HAMR (High Amplitude Multi-Roll) Surround, Allowing for Large Amounts of Linear Air Movement
– 1-Inch Silk Dome Tweeter
– Available 6×9-Inch S-Series Speaker Grills (Sold Separately)

In the Box:-
2 Woofers
2 Bottom Mount Brackets
2 Tweeters (each has a 29″ length of wire attached)
2 Flush Mount Housings (with tweeters installed)
2 Tweeter Grilles
Two 37″ Tweeter Wires with in-line Crossovers (each has quick slides on both ends)
2 Flush Mount Retention Rings
2 Stealth Brackets
2 Foam Self-adhesive Pads
2 Foam Self-adhesive Rings
Eight 1-3/16″ Screws
Eight M4x60mm Machine Screws (each screw has a lock washer attached)
Eight M4 Nuts
8 Speed Clips
16 Flat Washers
8 Split Lock Washers
8 Spacers
/////ALPINE S-S69C Owner’s Manual Card
S-Series Amplifier Application Guide (English/ French)
Online Product Registration Information (English/ French/ Spanish)
Warranty Information (English/ French)
Important Notice! (English/ French)
