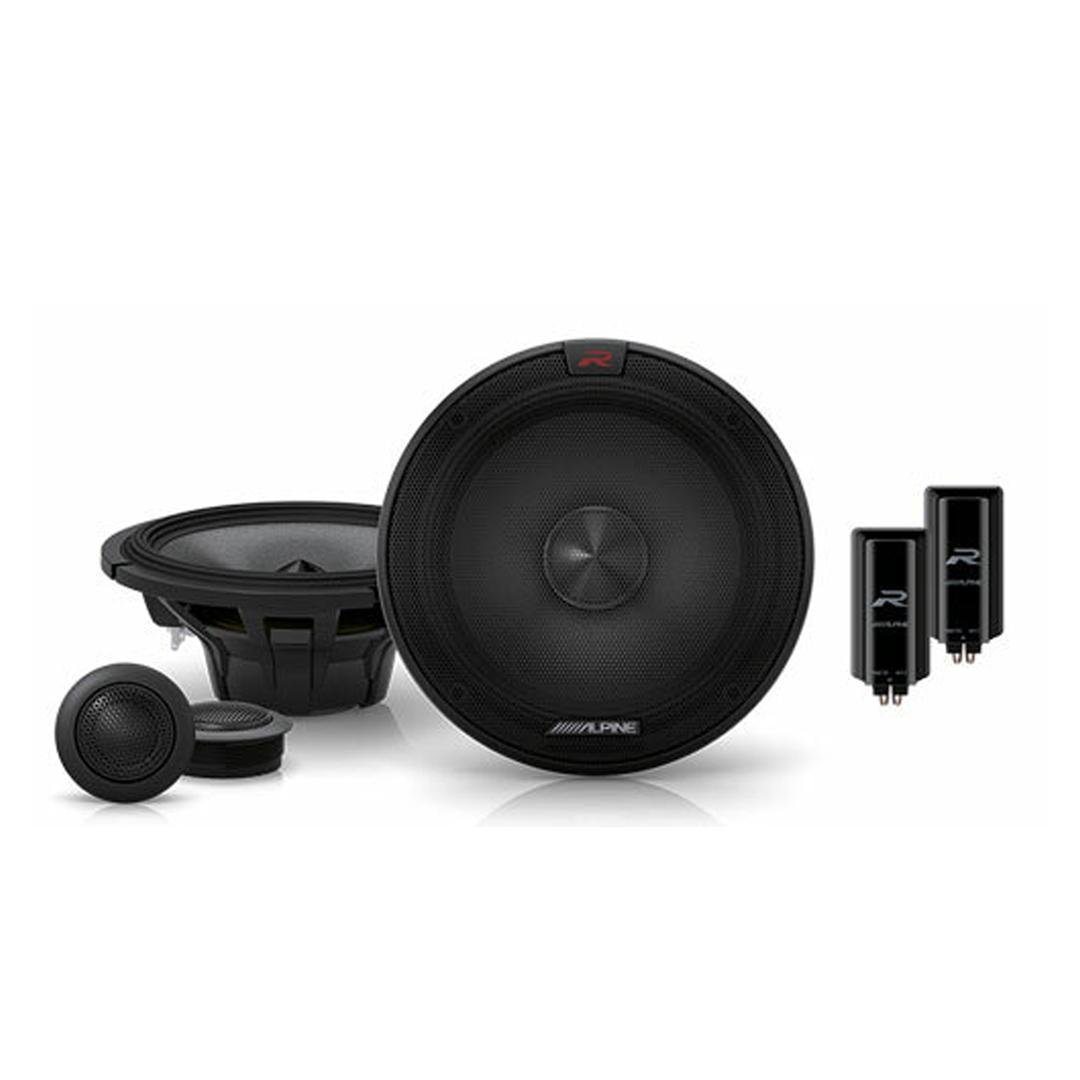

ALPINE R-S69.2 Car Speaker

Product Detail –
Brand – /////ALPINE
Series – R Series
Model No. – S69.2
Type/Component – 2-Way Speakers
Product Highlights:
6×9 Inches 2-Way Car Speakers (pair)
carbon-fiber-reinforced polymer (CFRP) Woofer
carbon-fiber-reinforced polymer Dome Tweeter
Sensitivity: 90 dB
Top-Mount Depth: 2-7/8″
Key Features:-
In-Line High-Quality Crossover
59 mm Mounting Depth
Swivel Tweeters
Neodymium Magnet
Multi-Layer Hybrid Cone
Dual Gap Voice Coil
All-New Design Circuit for Precision Response
Technical Specification –
Speaker Type
2-Way Speakers
Frequency Response
60 Hz – 40k Hz
Power Handling
Peak Power Handling: 300W
RMS Power Handling: 100W
Nominal Impedance: 4Ω (ohm)
Material
Hybrid Fiber (bulletproof fiber and carbon fiber)
The Aluminum-Magnesium Alloy Tweeter
Gold-Plated Terminals Corrosion-Resistant
Dimensions
Woofer Diameter (mm): 160mm x 240mm
Woofer Diameter (in): 6″ x 9″
Woofer Mounting Diameter (mm): 167mm
Woofer Mounting Diameter (in): 6-19/32″
Woofer Mounting Depth (mm): 75mm
Woofer Mounting Depth (in): 3″
Warranty
1 Year
General Specifications
Tweeter
Tweeter Type: 1 Inch Ring Radiator Tweeter
Voice Coil Type: Dual Gap for Optimum Linearity and Clarity
Magnet Material: Neodymium Magnet
Swivel Application allows the sound to be focused for the best in-car sound performance
Woofer
Cone Material: Hybrid Multi-Layer Cone
Motor Technology: Linear Drive Technology
Surround: HAMR Surround
Voice Coil Type: Dual Gap Voice Coil for optimum linearity and clarity
Magnet: Ultra High-Density Neodymium Magnet
DX Ring: DX Ring
Wave Guide: Wave Guide
Mounting: Shallow Mounting Design
Mounting Adapters: Mounting Adapter Kit Included
Design: Bi-Amp Ready Design
In the Box:-
/////ALPINE R-S69.2 Owner’s Manual Card
1 Piece – 2-Way Speakers
2 Piece – Bottom Mount Brackets
2 Piece – Grille Badges (grilles included)
8 Piece – 1-1/8″ Screws
8 Piece M4. – 60mm Machine Screws (with split lock washers attached)
8 Piece – Split Lock Washers
8 Piece – Flat Washers
8 Piece – M4 Hex Nuts
8 Piece – Speed Clips
Alpine Verification Certificate
Power Supply Note
Online Product Registration Information (English/ French/ Spanish)
Warranty Information (English/ French)
Important Notice! (English/ French)
Template and Specs on Box
